More than a fan controller

For a long time, SMC support on Intel Macs mostly meant temperatures and fan speeds. That was already useful, but on a T2 Mac it left a surprising amount of the hardware in our Macs behind a locked door. applesmc was built for a different generation of hardware and is now on its way out. The future is Asahi Linux's macsmc.

In KAIT2EN we already implemented that as t2smc.

A downstream runway for macsmc#

@ruiCON, better known around KAIT2EN as @byte, is working on the patches that will make T2 Macs use macsmc upstream. Those patches are not submitted yet, but waiting for the entire upstream journey before touching any of this would leave both the hardware and the code largely untested.

We therefore wrote t2smc as a downstream relative of macsmc. It gives KAIT2EN users the useful interfaces now, while giving us somewhere to test SMC keys, find model differences and work out which parts are actually dependable. The results feed back into the future macsmc support instead of becoming a second driver we intend to maintain forever.

That distinction matters. t2smc is not an attempt to race macsmc into the kernel under another name. It is the test bench we can put in users' hands today.

Back to the Future#

The most boring feature turned out to be one of the most important: RTC.

The hardware clock on these machines was effectively broken under Linux. If the time drifted far enough, the usual advice was to boot macOS and let it straighten things out. That is annoying when macOS is still installed and a proper disaster when someone has wiped it from the disk. Suddenly certificates are not valid yet, SSL falls over and the network looks broken because the laptop thinks it has travelled through time.

andre@fedora:~/Develop/kait2en$ sudo dmesg
[19.70] rtc_cmos: 70s Baby! weed, afro hair, flared pants. AH YE!

t2smc exposes the clock behind the T2 as a normal Linux RTC. Loaded early in the initramfs, it can become rtc0 and set the system clock during boot. No macOS rescue trip required. Just load t2smc, blacklist applesmc and prevent rtc_cmos from initializing, and you're back to 2026 RAM and gas prices. Isn't that better?

70s Dodge Charger goes for a Charge Limit#

The same driver exposes Apple's battery charge limit. T2 SMC Control can set that limit and restore it after boot, which is particularly useful for machines that spend most of their lives attached to a charger.

This sounds like a small quality-of-life feature until the alternative is keeping an ageing MacBook battery pinned at full charge all day. A slider and a persistent setting are much better than another magic SMC key hidden in a shell command.

Any KAIT2EN fans here? Everyone should have fans#

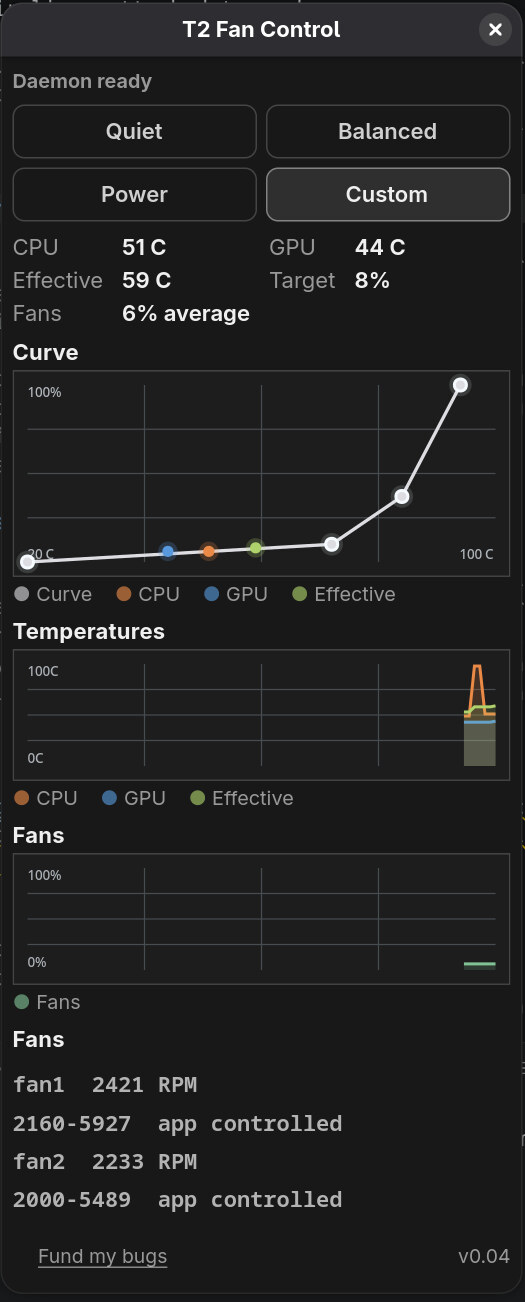

Fan control also moved onto the standard hwmon interface. Current, minimum, maximum and target speeds are visible where ordinary Linux monitoring software expects them, and writing a target switches that fan into manual mode.

That means users are no longer tied to the old fan-rd setup just because it was the only thing that knew how to reach the hardware. Existing fan daemons can use the same interfaces, while KAIT2EN provides its own GUI for people who would rather not manage cooling with terminal commands.

Drop it like it's hot! Drop it like it's hot!#

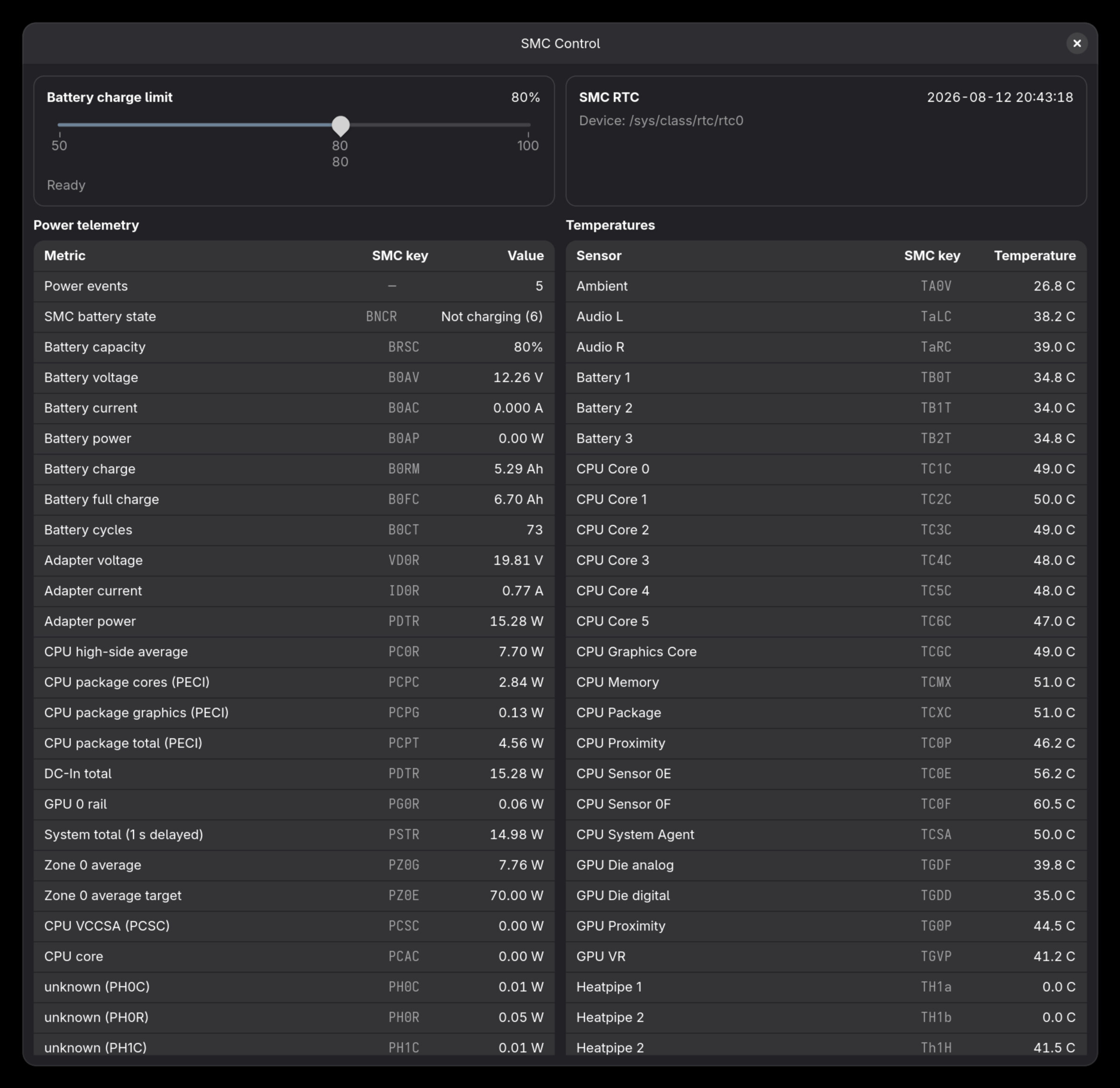

Temperatures were only the beginning. t2smc discovers the available thermal and power keys dynamically, and also exposes battery and adapter telemetry. On our machines T2 SMC Control ends up presenting more than 100 values: CPU and GPU temperatures, proximity sensors, voltage regulators, battery state, adapter power and plenty of four-letter Apple keys that still need to earn a friendly name. Because nobody knows what they actually show. But the sheer mass of sensors is quite impressive and gives us hints about how much control the T2 and macOS have.

That mass of data is not there merely because a large sensor list looks impressive. It became one of our best tools for tracing PROCHOT. When every CPU core suddenly drops to 800 MHz, the CPU registers can tell us that an external throttle happened. The SMC sensors help us work out what around the CPU was hot, how much power the machine was drawing and whether the shared cooling system was already saturated.

Now fan curves, battery experiments, charger behaviour and power measurements no longer have to be guessed from one package temperature.

Helluvaloop#

Testing T2 kernel work used to mean pointing somebody at a special T2Linux kernel branch and asking them to compile the whole thing. Very few testers were set up to do that, and even fewer felt like spending roughly two hours building a kernel just to test two small changes. That is a fairly efficient way to lose a volunteer before the first log arrives.

KAIT2EN packages t2smc through DKMS instead. A tester can install a new module in minutes, reboot and report what their particular MacBook exposes. We can send an adjustment back just as quickly. During active debugging, dozens of willing users can try the same change without each of them becoming a kernel builder first.

That feedback loop is gold for hardware we do not have on the desk. It is how an unknown SMC key turns into a verified sensor, how a model-specific regression gets caught early.

t2smc started as the missing hardware interface behind a fan controller. It ended up fixing the clock, making charge limiting practical and giving the rest of our power work eyes. @ruiCON's macsmc work gives that exploration a proper upstream destination. Not bad for the part of the machine most users should never have to think about.
